Acknowledgements

This project is based on the AddressBook-Level3 project created by the SE-EDU initiative.

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

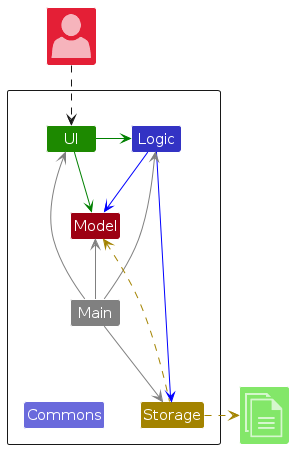

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app's work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

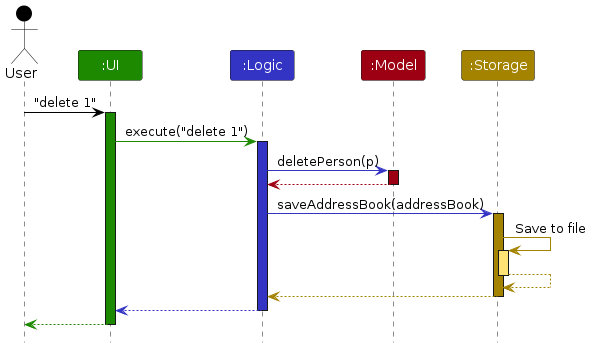

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

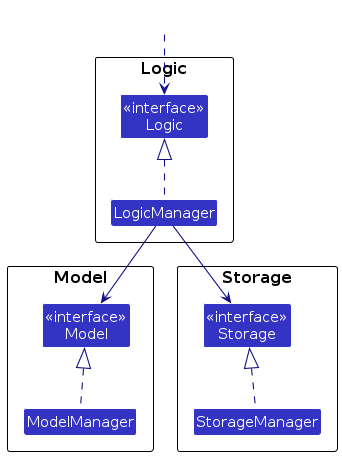

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component's being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

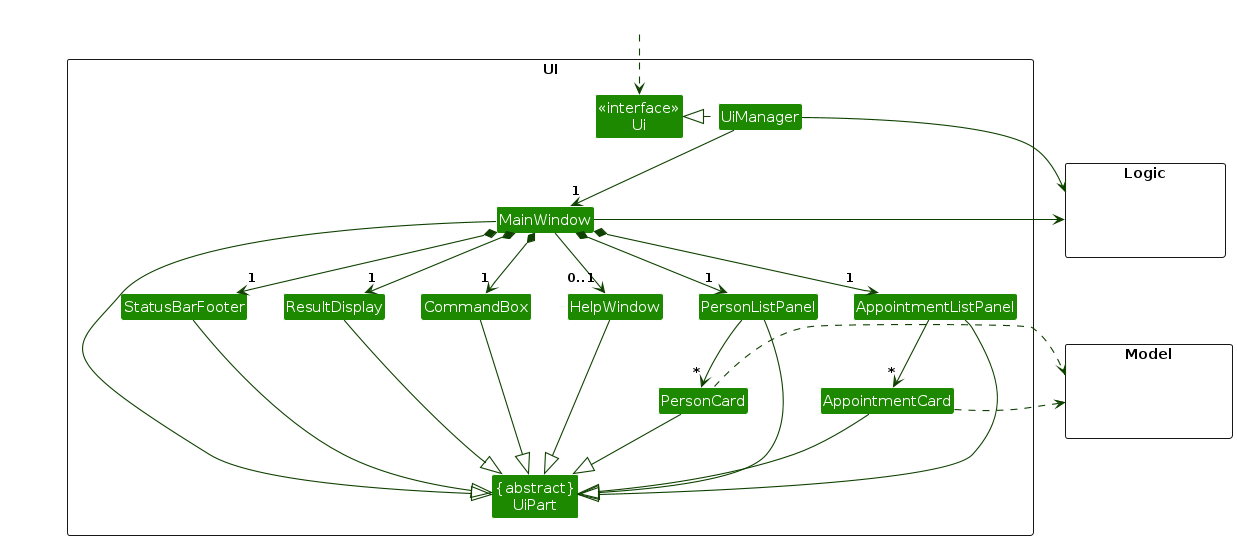

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

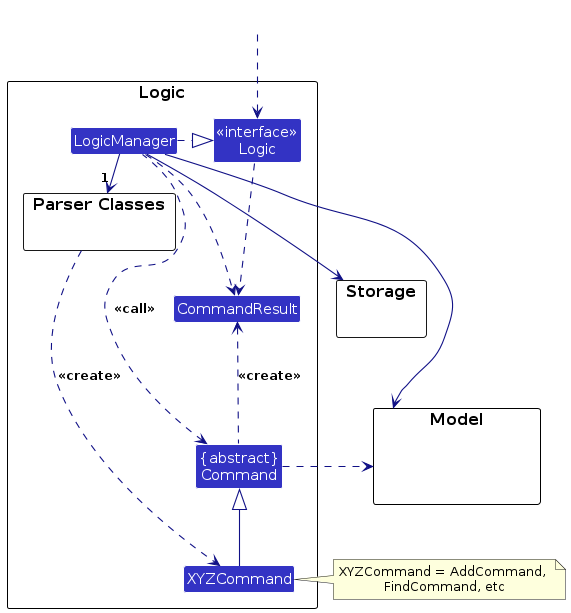

Here's a (partial) class diagram of the Logic component:

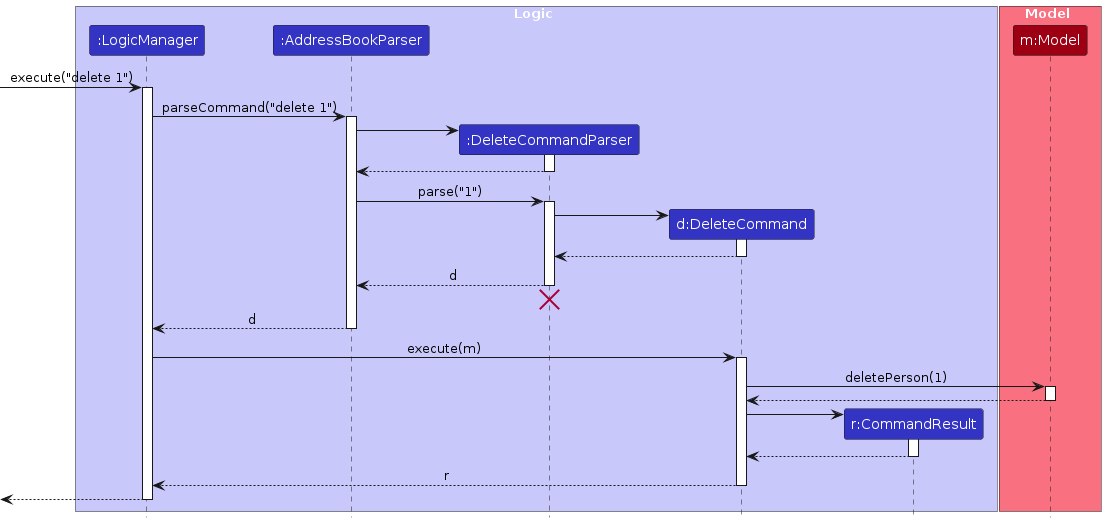

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an AddressBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a person).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

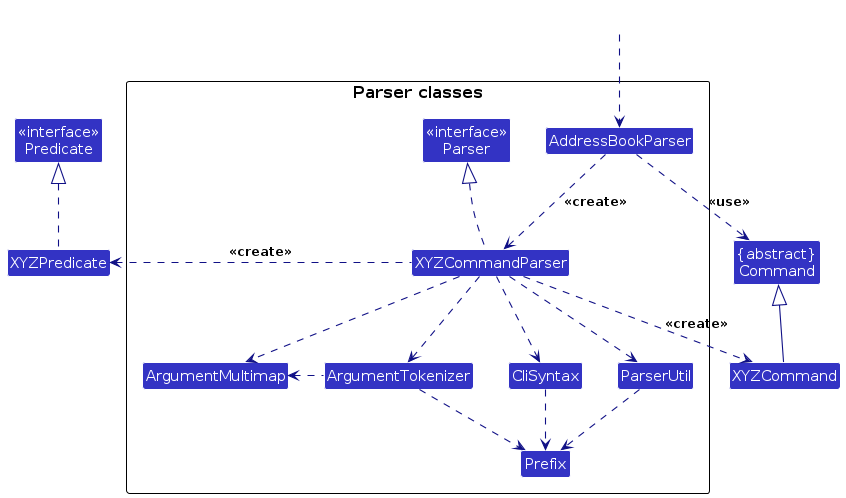

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the AddressBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the AddressBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, ...) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

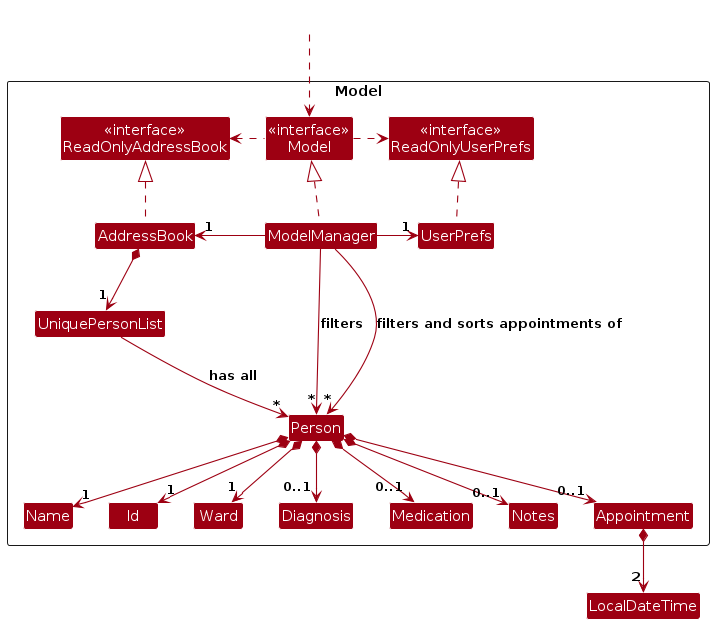

Model component

API : Model.java

The Model component,

• stores the application data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores two instances of currently 'selected' Person objects (e.g., results of a search query and a schedule query) as a filtered patient list and a filtered and sorted appointment list which are exposed to outsiders as two separate unmodifiable ObservableList<Person> that can be 'observed' e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

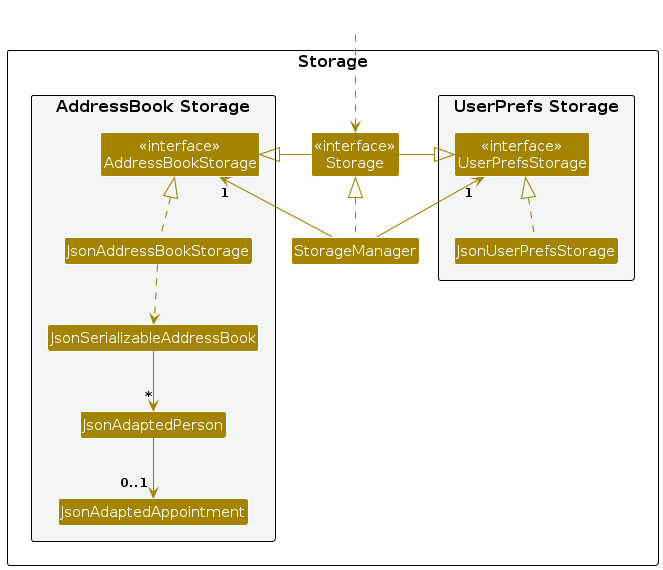

Storage component

API : Storage.java

The Storage component,

• can save both application data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both AddressBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component's job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Add Patient Feature

Overview

The add command allows users to add new patients. The command requires:

• Name – Patient's name.
• ID – Patient's unique ID.
• Ward – Patient's Ward.
• Diagnosis (Optional) – Patient's Diagnosis.
• Medication (Optional) - Patient's Medication.

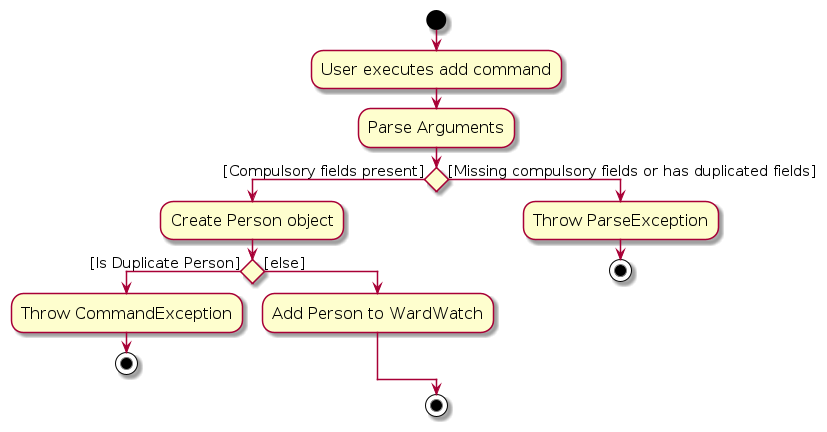

Here is an activity diagram that summarises the key steps taken.

1. Parsing User Input

The AddCommandParser class is responsible for parsing user input. It uses ArgumentTokenizer to tokenize the input string, extracting:

• Name – Patient's name.
• ID – Patient's unique ID.
• Ward – Patient's Ward.
• Diagnosis – Patient's Diagnosis.
• Medication - Patient's Medication.

The parser will check that the compulsory Name, ID, and Ward fields are present, and that there are no duplicate parameters included in the input string. The optional Diagnosis and Medication fields will be parsed as empty strings if they are not included in the input string.

During this parsing process:

• A Person instance is created to hold the relevant fields.

2. Executing the Command

The AddCommand class performs the following when adding a patient:

1. Update Existing Patient Record:
   The new Person instance will be added to the existing patient record in the Model.

3. Exceptions and warnings

The AddCommand class enforces validation rules to ensure non-duplicates and potential incorrect input fields.

• Ensuring non-duplicates: Check that the new person added does not already exist in WardWatch, i.e. does not already exist a person with same ID.


• Warnings: The command will also check for the presence of special characters in the Ward and ID fields. An appropriate warning will be displayed if they are present.

Add Notes Feature

Overview

The addnotes command allows users to add notes to a specific patient. The command requires:

• Index – Patient's index in the displayed patient list.
• Notes - Patient notes that the user wishes to write for the specified patient.

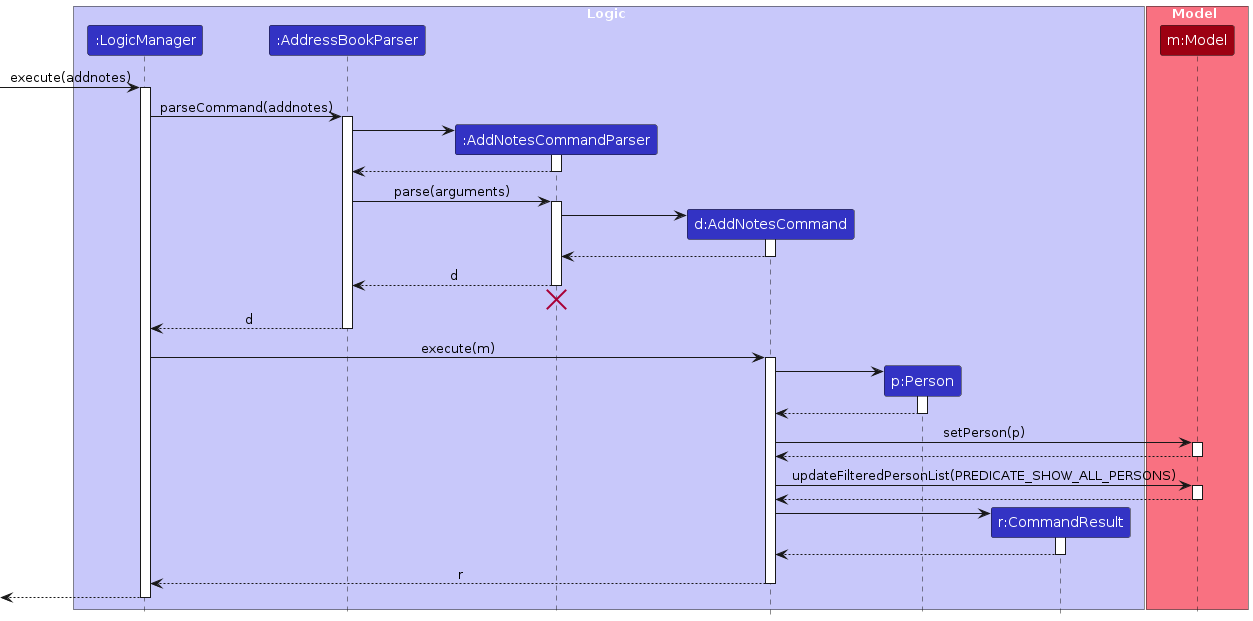

Here is a sequence diagram which showcases the flow of the program as well as the key steps taken.

1. Parsing User Input

The AddNotesCommandParser class is responsible for parsing user input. It uses ArgumentTokenizer to tokenize the input string, extracting:

• Index – Identifies the patient in the displayed patient list.
• Notes - Patient notes that the user wishes to write for the specified patient.

During this parsing process:

• A Notes instance is created to hold the note details.

2. Executing the Command

The AddNotesCommand class performs the following steps to add Notes to a patient:

1. Retrieve Patient Information:
   Uses the index from the parser to locate the patient in the latest filtered list of patients.

2. Create New Person Instance with the Notes instance:

   • Combines patient information with the new Notes details.
   • Creates a new updated Person instance, with the Notes.

3. Replace Existing Patient Record: The new Person instance, with the Notes, replaces the existing patient record in the Model.

4. Updating filtered list: The Model will then update the filtered list of patients to show all patients.

3. Handling Invalid Date Inputs

The AddNotesCommandParser and AddNotesCommand classes enforce validation rules to ensure that valid index and notes are being passed in.

• Valid index verification:
  • AddNotesCommandParser checks if the index is an unsigned non-zero integer.
  • AddNotesCommand checks if the index is greater than the number of patients in the last displayed list.


• Valid notes verification:
  • AddNotesCommandParser checks if the user input for notes is empty and throws an error message stating that the user is unable to add empty notes to a patient.

Add Appointment Feature

Overview

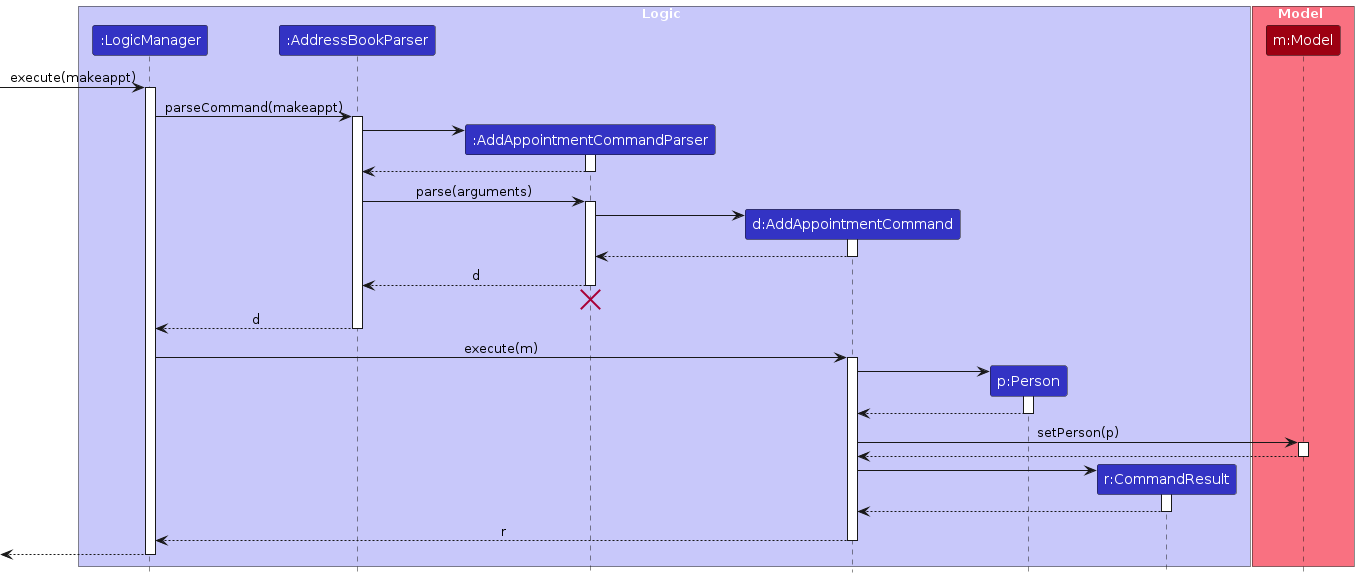

The makeappt command allows users to add an appointment tied to a specific patient. The command requires:

• Index – Patient's index in the address book.
• Start Date – Beginning date and time of the appointment.
• End Date – Ending date and time of the appointment.
• Description – Brief description of the appointment.

1. Parsing User Input

The AddAppointmentCommandParser class is responsible for parsing user input. It uses ArgumentTokenizer to tokenize the input string, extracting:

• Index – Identifies the patient in the address book.
• Start Date – Beginning of the appointment.
• End Date – End of the appointment.
• Description – Additional details about the appointment.

During this parsing process:

• An Appointment instance is created to hold the appointment details.

2. Executing the Command

The AddAppointmentCommand class performs the following steps to add an appointment:

1. Retrieve Patient Information:
   Uses the index from the parser to locate the patient in the latest filtered list of patients.

2. Create New Person Instance with Appointment:

   • Utilises patient information from the current patient (identified by the index) and the new Appointment details.
   • Creates an new Person instance with patient information and Appointment instance.

3. Replace Existing Patient Record: The new Person instance, containing the Appointment, replaces the existing patient record in the Model.

3. Handling Invalid Date Inputs

The AddAppointmentCommandParser and AddAppointmentCommand classes enforce validation rules to ensure correct date formats and scheduling logic:

• Format Verification:

  • AddAppointmentCommandParser checks if the date and time format follows dd-MM-yyyy-HH-mm.
  • It also ensures the Start Date is before or equal to the End Date.
  • It also checks if date and time is valid.



• Conflict Checking:

  • AddAppointmentCommand checks if the new appointment overlaps with any existing appointments for the patient.
  • If there is an overlap, an error message is thrown, preventing the appointment from being created.
  • If no overlap exists, the new appointment overrides any previous appointment.

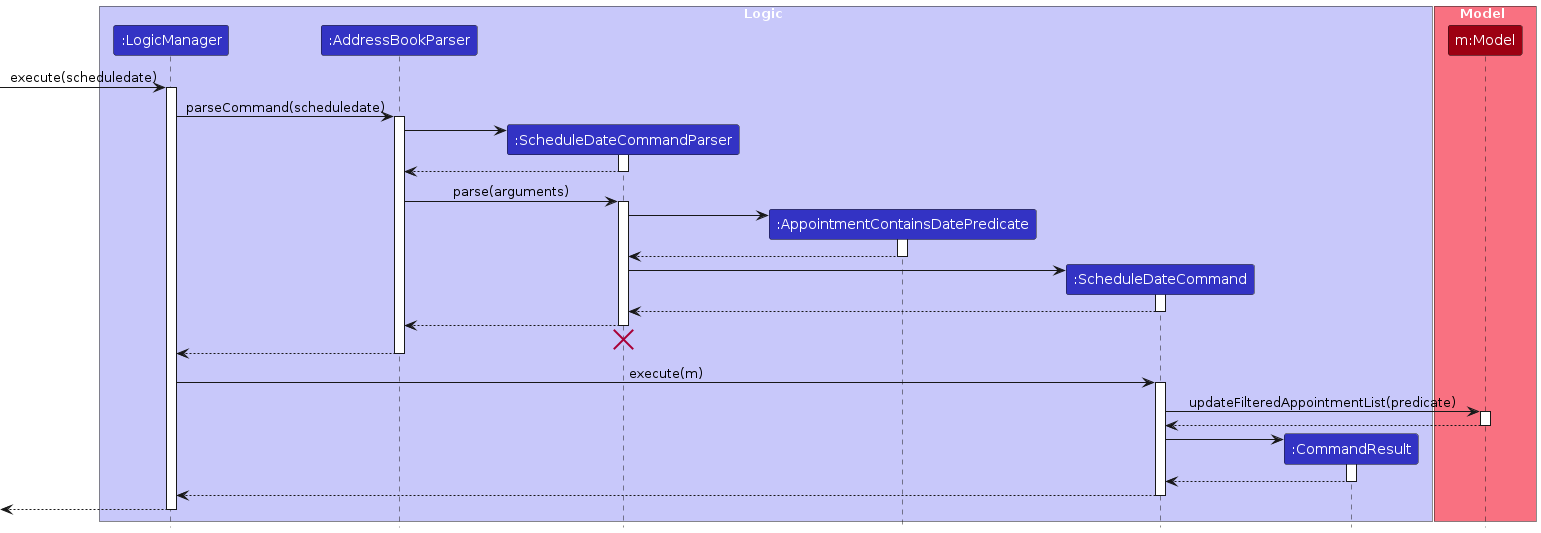

Schedule Date Feature

Overview

The scheduledate command allows users to filter the appointments occurring on a specified date. The command requires:

• Date – Date regarding schedule of interest.

1. Parsing User Input

The ScheduleDateCommandParser class is responsible for parsing user input. It uses ParserUtil extracting:

• Date – Date regarding schedule of interest.

During this parsing process:

• An AppointmentContainsDatePredicate instance is created to hold the date predicate details.

2. Executing the Command

The ScheduleDateCommand class performs the following steps to filter the appointments:

1. Update filteredAppointments:
   Uses the AppointmentContainsDatePredicate from the parser to update filteredAppointments in Model.

2. Display sortedAppointments: sortedAppointments will be updated with the updated filteredAppointments in Model. sortedAppointments is displayed.

3. Handling Invalid Date Inputs

The ScheduleDateCommandParser class enforces validation rules to ensure correct date format and scheduling logic:

• Format Verification:
  • ScheduleDateCommandParser checks if the date format follows dd-MM-yyyy.
  • It also checks if the date is valid.

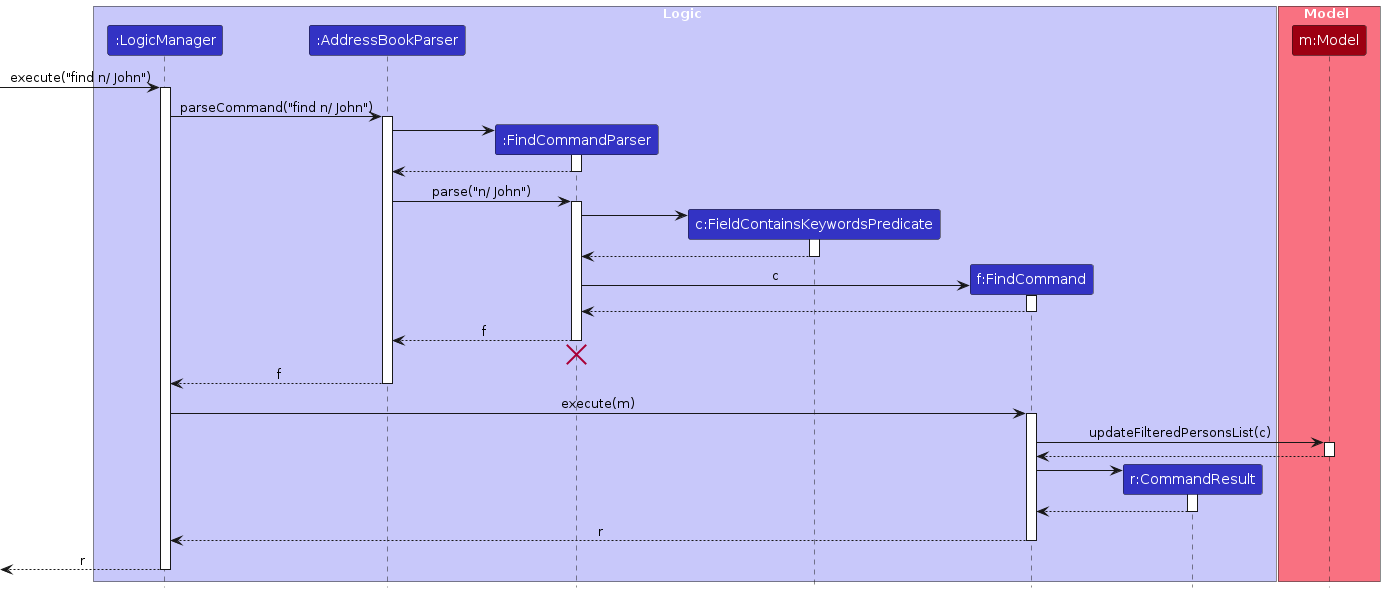

Find Feature

Overview

The find command allows users to search through the entire patient list and filter it based on a given field and certain keywords. The command requires:

• Field - The specific field to perform the search on.
• Keyword(s) - The keyword(s) to search for.

1. Parsing User Input

The FindCommandParser class is responsible for parsing user input. It uses ArgumentTokenizer to tokenize the input string, extracting:

• Prefix - the prefix associated with the field we wish to search through.
• Search String - A String containing the keyword(s) to search for.

During the parsing process:

• The Search String is split by white spaces, creating a list of Keyword(s).
• A FieldContainsKeywordPredicate instance is created to hold the field and Keyword(s) details.

2. Executing the Command

The FindCommand class performs the following steps to filter the patient list:

1. Update filteredPersons: Uses the FieldContainsKeywordPredicate from the parser to update filteredPersons in Model. This will perform a search on the specified field for every patient, returning true if any word in the field contains any of the keyword(s) as a substring.

2. Display filteredPersons: The displayed list of patients will automatically update with the new filteredPersons as it is an ObservableList.

3. Handling Invalid Inputs

The FindCommandParser class enforces validation rules to ensure that the input is valid:

• Format Verification:
  • FindCommandParser checks if there is one and only one field specified.
  • It also checks to ensure the search string is not empty.

---

Planned Enhancements

Last edited functionality

Currently, there is no way to tell when a patient was last edited. This information might be crucial in a healthcare setting where the healthcare professional may need to know how recent the information is.

Planned implementation

We can make it such that a Person object contains a LocalDateTime field called lastEdited that keeps track of when the Person was last updated. This field will be updated whenever a new Person is created, be it from the add command or any of the other commands that edits a Person. The lastEdited field will be displayed in the result display screen.

Make "Index does not exist" error message more specific

Currently, whenever a user enters a command that requires INDEX as a parameter, such as the view or delete command, and enters an index that is either non-positive or greater than Integer.MAX_VALUE of 2147483647, WardWatch will show the general invalid command format message followed by the command usage message.

Planned implementation

We plan to make the current invalid index message more specific and add more error messages in the case where users pass in the following invalid indexes:

• The current invalid index message which is thrown when a valid index that is greater than the largest index in the displayed patient list just states that The person index provided is invalid and is not specific enough. We plan to change it to The index provided does not refer to any patient in the displayed list, please check the displayed list again! which will give users a better idea of what went wrong.
• In the case where the index passed in is greater than the Integer.MAX_VALUE, the error message The index provided is greater than 2147483647 which is unfortunately not supported in our product, please try again with a smaller index! will be shown.
• In the case where the index passed in is non-positive, the error message INDEX provided must be a positive integer, please try again! will be shown.



Add appointment title and description and viewappt command

Currently, our makeappt command only allows users to create appointments with a short description. This prevents users from adding too much information to the current description which may be restrictive.

Planned implementation

We plan to separate appointment title and description which gives users more flexibility. Appointment title will just be a short description such as Surgery or Medical checkup and support a character limit of 40. Appointment description will be for additional information about the appointment that the user may want to add. The appointment description will support a much longer character limit of 300 but will not be shown in the appointment list panel as the long inputs may cause issues with the UI.
As such we will also implement a viewappt command that allows users to view all information about the appointment including the new appointment description.

Add command shortcut for longer commands

Currently, some of the commands in WardWatch such as scheduleall and scheduledate are very long and may be hard to type for users.

Planned implementation

We plan to add command shortcuts for longer commands such as sAll and sDate for the commands scheduleall and scheduledate respectively. These command shortcuts will work alongside the original commands, meaning that whether the user types in sAll or scheduleall, WardWatch will recognise both as the scheduleall command.
This is so that seasoned and more advanced users have the option to optimise their workflow by utilising the command shortcuts while newer users still have the option of using the more intuitive sounding commands which reduces the learning curve.

Fix addnotes command showing all patients

Currently, the successful execution of an addnotes command will subsequently reset the last filtered list of patients to show all patients again. Resetting the displayed list may make it difficult for the user to confirm his/her changes.

Planned implementation

We plan to change the implementation of addnotes command such that the patient list will remain filtered after the successful addition of notes.

Make duplicate ID checking case-insensitive

Currently, the checking for duplicate patient ID when creating a new patient is case-sensitive, meaning that patients with similar IDs except for the casing of letters will be considered different. For example, the IDs P12345 and p12345 will be considered different. This may increase user errors when they are searching for a specific patient.

Planned implementation

We plan to make the duplicate ID cross-checking case-insensitive such that similar IDs that differ only by casing will be considered as duplicate. This will help to reduce the room for human error when using our product.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product Scope

Target user profile:

• healthcare professionals
• has a need to manage a significant number of patients
• prefer desktop apps over other types
• can type fast
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps

Value proposition:

• manage patients faster than a typical mouse/GUI driven app
• reduce time spent on administrative tasks by centralizing information, allowing user to focus more on patient care

User Stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Use Cases

(For all use cases below, the System is the WardWatch and the Actor is the doctor, unless specified otherwise)

Use case: UC01 - Add a patient

MSS

1. Doctor submits new patient information.

2. WardWatch displays a success message containing information of new patient.

   Use case ends.

Extensions

• 1a. The information entered is invalid.

  • 1a1. WardWatch shows an invalid patient information error message.

    Use case resumes at step 1.

• 1b. The format of the input is invalid.

  • 1b1. WardWatch shows an invalid format error message.

    Use case resumes at step 1.

Use case: UC02 - Delete a patient

Preconditions: WardWatch is displaying a non-empty list of patients.

MSS

1. Doctor requests to delete a specific patient from the displayed list.

2. WardWatch deletes the patient.

   Use case ends.

Extensions

• 1a. Doctor request to delete invalid patient.

  • 1a1. WardWatch shows an invalid patient message.

    Use case resumes at step 1.

Use case: UC03 - Update a patient

Preconditions: WardWatch is displaying a non-empty list of patients.

MSS

1. Doctor submits new patient information of specific patient.

2. WardWatch displays information of updated patient.

   Use case ends.

Extensions

• 1a. The information entered is invalid.

  • 1a1. WardWatch shows an invalid patient information error message.

    Use case resumes at step 1.

• 1b. The format of the input is invalid.

  • 1b1. WardWatch shows an invalid format error message.

    Use case resumes at step 1.

Use case: UC04 - Search a patient

MSS

1. Doctor searches for patients.

2. WardWatch shows a list of patients matching the search.

   Use case ends.

Extensions

• 2a. Doctor tries to do an invalid search.

  • 2a1. WardWatch shows an invalid search error message.

    Use case resumes at step 1.

• 2b. There is no patient that matches the search.

  • 2b1. WardWatch shows that there are no matching patients.

    Use case ends.

• 2c. The format of the input is invalid.

  • 2c1. WardWatch shows an invalid format error message.

    Use case resumes at step 1.

Use case: UC05 - View patient

Preconditions: WardWatch is displaying a non-empty list of patients.

MSS

1. Doctor request to view a specific patient from the list.

2. WardWatch displays information about the specific patient.

   Use case ends.

Extensions

• 1a. Doctor request to view invalid patient.

  • 1a1. WardWatch shows an invalid patient message.

    Use case resumes at step 1.

Use case: UC06 - List patients

MSS

1. Doctor request to list all patients.

2. WardWatch shows a list of all patients.

   Use case ends.

Extensions

• 2a. The list is empty.

  • 2a1. WardWatch shows that list is empty.

    Use case ends.

Use case: UC07 - Add Appointment

MSS

1. Doctor submits new Appointment information for a patient.

2. WardWatch displays success message with the updated patient information.

   Use case ends.

Extensions

• 1a. The information entered is invalid.

  • 1a1. WardWatch shows an invalid Appointment information error message.

    Use case resumes at step 1.

• 1b. The format of the input is invalid.

  • 1b1. WardWatch shows an invalid format error message.

    Use case resumes at step 1.

Use case: UC08 - Delete Appointment

Preconditions: WardWatch is displaying a non-empty list of patients.

MSS

1. Doctor request to delete an Appointment tied to a patient.

2. WardWatch deletes specified appointment.

3. WardWatch shows a success message.

   Use case ends.

Extensions

• 1a. The delete appointment command format entered is invalid.

  • 1a1. WardWatch shows an incorrect format error message.

    Use case resumes at step 1.

• 1b. Doctor requests to delete an Appointment from an invalid patient.

  • 1b1. WardWatch shows an invalid patient message.

    Use case resumes at step 1.

• 1c. Doctor requests to delete a non-existing Appointment from a patient.

  • 1c1. WardWatch shows patient does not have Appointment error message.

    Use case resumes at step 1.

Use case: UC09 - Change Appointment

MSS

1. Doctor deletes existing Appointment(UC08).

2. Doctor adds new Appointment with updated details(UC07).

   Use case ends.

Use case: UC10 - See Schedule for a certain day

MSS

1. Doctor request to see schedule for a certain day.

2. WardWatch shows a success message and displays all appointments for that day.

   Use case ends.

Extensions

• 1a. The date format is invalid.

  • 1a1. WardWatch shows an invalid date error message.

    Use case resumes at step 1.

Use case: UC11 - See all Schedules

MSS

1. Doctor request to see schedule for all days.

2. WardWatch displays all appointments for all days.

   Use case ends.

Extensions

• 1a. The schedule all command format is invalid.

  • 1a1. WardWatch shows an error message.

    Use case resumes at step 1.

Use case: UC12 - Add Notes tied to a specific patient

Preconditions: WardWatch is displaying a non-empty list of patients.

MSS

1. Doctor submits new Notes for a certain patient.

2. WardWatch displays a success message with the Patient information and the new Notes.

   Use case ends.

Extensions

• 1a. The information entered is invalid.

  • 1a1. WardWatch shows an invalid Patient Notes information error message.

    Use case resumes at step 1.

• 1b. The format of the input is invalid.

  • 1b1. WardWatch shows an invalid format error message.

    Use case resumes at step 1.

Use case: UC13 - delete Notes tied to a specific patient

MSS

1. Doctor request to delete Notes from a specific Patient.

2. WardWatch deletes the Patient Notes.

   Use case ends.

Extensions

• 1a. The delete Notes command format entered is invalid.

  • 1a1. WardWatch shows an incorrect format error message.

    Use case resumes at step 1.

• 1b. Doctor requests to delete Notes from an invalid patient.

  • 1b1. WardWatch shows an invalid patient message.

• 1c. Doctor requests to delete non-existing Notes from a patient.

  • 1c1. WardWatch shows Patient does not have Appointment error message.

    Use case resumes at step 1.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 17 or above installed.
2. Should be able to hold up to 1000 persons without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. The system should respond to user actions within 1 second under normal load.
5. Will not have a server or cloud storage system. All data will be stored in local storage.
6. The system should handle errors gracefully, providing meaningful messages to users without crashing.
7. The system should be able to work offline, in the absence of internet connection.

Glossary

• Mainstream OS: Windows, Linux, Unix, MacOS
• Patient: A person that has been designated to be under the care of the user (i.e. a doctor or nurse).
• Local Storage: A text file, with read and write properties, located relative to the application file.

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the .jar file and copy into an empty folder

   2. cd into the folder and run java -jar wardwatch.jar
      Expected: Shows the GUI with a set of sample contacts.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by running the command above.
      Expected: The most recent window size and location is retained.

Adding a patient

Command: add

1. Adding a patient with all fields
   • Prerequisites:
     • No patients in the list


   • Test Case: add n/John Doe i/P00001 w/A1 d/Type 1 Diabetes m/Metformin

   • Expected A patient with the following fields is added to the list:
     • Name: John Doe
     • ID: P00001
     • Ward: A1
     • Diagnosis: Type 1 Diabetes
     • Medication: Metformin
     • Notes: -
     • Appointment: -


2. Adding a patient without some optional fields (DIAGNOSIS or MEDICATION)
   • Prerequisites:
     • No patients in the list


   • Test Case: add n/Kathy Prince i/P00002 w/D1 d/Gastritis

   • Expected A patient with the following fields is added to the list:
     • Name: Kathy Prince
     • ID: P00002
     • Ward: D1
     • Diagnosis: Gastritis
     • Medication: -
     • Notes: -
     • Appointment: -


   • Test Case: add n/Joshua Lim i/P00003 w/C3 m/Paracetemol

   • Expected A patient with the following fields is added to the list:
     • Name: Joshua Lim
     • ID: P00003
     • Ward: C3
     • Diagnosis: -
     • Medication: Paracetemol
     • Notes: -
     • Appointment: -


3. Adding a patient without optional fields (DIAGNOSIS and MEDICATION)
   • Prerequisites:
     • No patients in the list


   • Test Case: add n/Emily Tan i/P00004 w/B2
   • Expected: A patient with the following fields is added to the list:
     • Name: Emily Tan
     • ID: P00004
     • Ward: B2
     • Diagnosis: -
     • Medication: -
     • Notes: -
     • Appointment: -



Editing a patient

Command: edit

1. Editing a patient with all fields
   • Prerequisites:
     • Non-empty patient list is displayed
     • First patient in the list does have fields that match the edited fields


   • Test Case: edit 1 n/Jeff Bean i/P10000 w/G5 d/influenza m/paracetomol
   • Expected: The first patient in the list is updated with the following fields:
     • Name: Jeff Bean
     • ID: P10000
     • Ward: G5
     • Diagnosis: influenza
     • Medication: paracetomol
     • Notes: remains unchanged
     • Appointment: remains unchanged


2. Editing a patient with a few fields
   • Prerequisites:
     • Non-empty patient list is displayed
     • First patient in the list does have fields that match the edited fields


   • Test Case 1: edit 1 n/Samuel Lee
   • Expected: The first patient in the list is updated with the following fields:
     • Name: Samuel Lee
     • ID: remains unchanged
     • Ward: remains unchanged
     • Diagnosis: remains unchanged
     • Medication: remains unchanged
     • Notes: remains unchanged
     • Appointment: remains unchanged


   • Test Case 2: edit 1 i/P20001 w/C1
   • Expected: The first patient in the list is updated with the following fields:
     • Name: remains unchanged
     • ID: P20001
     • Ward: C1
     • Diagnosis: remains unchanged
     • Medication: remains unchanged
     • Notes: remains unchanged
     • Appointment: remains unchanged


   • Test Case 3: edit 1 d/Bronchitis m/Amoxicillin w/D2
   • Expected: The first patient in the list is updated with the following fields:
     • Name: remains unchanged
     • ID: remains unchanged
     • Ward: D2
     • Diagnosis: Bronchitis
     • Medication: Amoxicillin
     • Notes: remains unchanged
     • Appointment: remains unchanged



Deleting a patient

Command: delete

1. Deleting a patient while all patients are being shown
   • Prerequisites:
     • Non-empty patient list is displayed


   • Test Case 1: delete 1
   • Expected: First patient is deleted from the list. Details of the deleted contact shown in the status message.


   • Test Case 2: delete 0
   • Expected: No patient is deleted. Error details shown in the status message.


   • Test Case 3: Other incorrect delete commands to try: delete, delete x (where x is larger than the list size)
   • Expected: No patient is deleted. Error details shown in the status message.



Searching for a patient

Command: find

1. Finding patients by their information.
   • Prerequisites:
     • Non-empty patient list is displayed


   • Test Case 1: find n/Emily Tan
   • Expected: Displays all patients with Name that contains Emily or Tan as a substring.


   • Test Case 2: find i/P00001
   • Expected: Displays all patients with ID that contains P00001 as a substring.


   • Test Case 3: find w/A1
   • Expected: Displays all patients with Ward that contains A1 as a substring.


   • Test Case 4: find d/Diabetes
   • Expected: Displays all patients with Diagnosis that contains Diabetes as a substring.


   • Test Case 5: find m/Metformin
   • Expected: Displays all patients with Medication that contains Metformin as a substring.



Viewing a patient

Command: view

1. Viewing a patient's information.
   • Prerequisites:
     • Non-empty patient list is displayed


   • Test Case 1: view 1
   • Expected: Displays the first patients information in the command result box.



Adding notes to a patient

Command: addnotes

1. Adding notes to a patient
   • Prerequisites:
     • Non-empty patient list is displayed


   • Test Case: addnotes 1 pn/patient prone to falling
   • Expected: The first patient in the list is updated with the following fields:
     • Name: remains unchanged
     • ID: remains unchanged
     • Ward: remains unchanged
     • Diagnosis: remains unchanged
     • Medication: remains unchanged
     • Notes: patient prone to falling
     • Appointment: remains unchanged


2. Adding empty patient notes
   • Prerequisites:
     • Non-empty patient list is displayed


   • Test Case: addnotes 1 pn/
   • Expected: WardWatch throws an error informing the user that they are unable to add an empty note to a patient.



Deleting notes from a patient

Command: delnotes

1. Deleting notes from a patient that has notes
   • Prerequisites:
     • Non-empty patient list is displayed
     • First patient in the list must have notes


   • Test Case: delnotes 1
   • Expected: The first patient in the list is updated with the following fields:
     • Name: remains unchanged
     • ID: remains unchanged
     • Ward: remains unchanged
     • Diagnosis: remains unchanged
     • Medication: remains unchanged
     • Notes: -
     • Appointment: remains unchanged


2. Deleting notes from a patient who does not have notes
   • Prerequisites:
     • Non-empty patient list is displayed
     • First patient in the list must not have any notes


   • Test Case: delnotes 1
   • Expected: WardWatch throws an error informing the user that the patient does not have any notes to delete.



Making an appointment

Command: makeappt

1. Adding an appointment to a patient
   • Prerequisites:
     • Non-empty patient list is displayed
     • The appointment the user adds must not overlap with any existing appointment


   • Test Case: makeappt 1 a/ Surgery s/ 01-01-2024-20-00 e/ 01-01-2024-23-00
   • Expected: The first patient in the list is updated with the following fields:
     • Name: remains unchanged
     • ID: remains unchanged
     • Ward: remains unchanged
     • Diagnosis: remains unchanged
     • Medication: remains unchanged
     • Notes: remains unchanged
     • Appointment: Surgery FROM 01 January 2024, 08:00 pm TO 01 January 2024, 11:00 pm


2. Adding an appointment that overlaps with other appointments
   • Prerequisites:
     • Non-empty patient list is displayed
     • The appointment the user adds must overlap with an existing appointment


   • Test Case: makeappt 1 a/ Checkup s/ 02-01-2024-20-00 e/ 02-01-2024-23-00
   • Expected: WardWatch throws the error message Appointment overlaps with another pre-existing appointment! Please check your schedule and try again



Deleting an appointment

Command: delappt

1. Deleting an appointment from a patient who has an appointment
   • Prerequisites:
     • Non-empty patient list is displayed
     • First patient has an appointment


   • Test Case: delappt 1
   • Expected: The first patient in the list is updated with the following fields:
     • Name: remains unchanged
     • ID: remains unchanged
     • Ward: remains unchanged
     • Diagnosis: remains unchanged
     • Medication: remains unchanged
     • Notes: remains unchanged
     • Appointment: -


2. Deleting an appointment from a patient who has no appointment
   • Prerequisites:
     • Non-empty patient list is displayed
     • First patient in the list has no appointment


   • Test Case: delappt 1
   • Expected: WardWatch throws the error message The Patient indicated does not have an appointment



Showing appointments on a particular date

Command: scheduledate

1. Show schedule on a particular date which has appointments
   • Prerequisites:
     • Non-empty patient list is displayed
     • At least one patient has an appointment
     • The date that you pass into the command as input has at least one appointment


   • Test Case: scheduledate 01-01-2024
   • Expected: WardWatch will give a message stating the number of appointments listed on that date and the appointment list will show all of those appointments.


2. Show schedule on a particular date which has no appointments
   • Prerequisites:
     • Non-empty patient list is displayed
     • The date that you pass into the command as input has 0 appointments


   • Test Case: scheduledate 02-01-2024
   • Expected: WardWatch shows the message 0 appointment(s) on 02 January 2024 listed and the appointments list shows no appointments.



Showing all appointments

Command: scheduleall

1. Show all appointments
   • Prerequisites:
     • Non-empty patient list is displayed
     • At least one patient has an appointment


   • Test Case: scheduleall
   • Expected: WardWatch shows the message Displayed all appointments and the appointment list will show all appointments.



Appendix: Efforts

This section presents an overview of the work invested by our team in developing WardWatch. We will discuss the complexity and scope, obstacles encountered, and effort required to bring this project to completion.

Complexity and Scope

WardWatch expands on the Person entity originally found in AB3 by adding new entities, such as Appointment and Medication, to meet healthcare-specific demands. These additions introduced new requirements for feature interactions, data management, and storage, which proved more intricate than initially expected.

Beyond adapting AB3’s original features to better fit our target users, WardWatch introduces numerous commands to enhance the application’s usability, particularly for managing patient information and healthcare operations. Integrating these features smoothly with existing functionality demanded considerable attention to detail.

While each of us contributed fewer lines of code than in individual assignments, the group project required substantial coordination and teamwork. This collaboration was essential to ensure cohesive integration and functionality across all new features.

Effort Invested

Improvements to Existing Features

New Patient Data Fields
To meet the requirements of a healthcare management application, additional fields—such as diagnosis, medications, notes, and appointments were incorporated to provide a more comprehensive patient profile.

Enhanced Search Capabilities
Our team upgraded the find command from AB3 to offer greater flexibility, allowing searches by not only name but also fields like diagnosis and medications. The enhanced find feature also enables filtering by specific criteria, which involved a full redesign of the search logic and thorough testing.

User Interface (UI) Enhancements
We revamped the interface to align with WardWatch’s new features and a healthcare-oriented theme. Additionally, the UI logic was refined to enable future developers to make changes with ease.

Newly Added Features

Appointment Tracking
The appointment tracking features represent one of the most significant additions, necessitating major changes to existing structures and multiple new commands to manage appointment schedules. This feature was the most complex and required a substantial effort to coordinate data interactions across various entities. We also had to factor in creating the class AppointmentContainsDatePredicate that implements Predicate such that the list can actually be filtered.

Appointments Scheduling
Appointments scheduling was another big change we made for our application. It required a thorough understanding of storage management and the Java libraries such as LocalDateTime and ObservableList, etc.

Notes
Our team introduced Notes management commands, such as addnotes and delnotes, which involved creating new classes to support the Notes field and commands. We also took additional steps to ensure compatibility with existing command functionality.

Challenges Encountered

Understanding the AB3 Codebase
One major hurdle was grasping the existing AB3 codebase, including the structure, class dependencies, and functionality. This required us to carefully analyze how existing features would interact with our additions, which took considerable time and planning.

Data Interaction Between New and Existing Entities
Linking new entities like Appointment with the Person entity required a thoughtful approach. We needed to create a clear data structure to maintain relationships without introducing dependencies that could hinder usability.

UI Space Constraints
Designing a user-friendly interface within limited screen space was a significant challenge. We needed to balance providing sufficient information with maintaining a streamlined layout. After several iterations, we finalized a design that offers essential data without cluttering the interface.

Implementation of new fields
The addition of new fields such as diagnosis and medication functionalities were more intricate than anticipated. These features required careful planning to account for various scenarios, recognising the balance between restricting the user input to overstricting. Regular discussions helped to streamline our ideas tasks and address any arising issues efficiently.

Implementation of Appointments
In particular, we faced difficulties when attempting to implement the schedule as an ObservableList<Person> as it not only had to be filtered, but also had to be sorted. Having to understand the API of ObservableList provided by JavaFX was challenging. We also had to factor in creating the class AppointmentContainsDatePredicate that implements Predicate<Person> such that the list can actually be filtered, which brought about additional complexity.

Data Management Strategy
Deciding on a data management structure for appointments and medications presented additional challenges. We carefully considered how to balance the storage of patient data within main entities or across relevant contexts.

Debugging and Testing
Testing and debugging were crucial for ensuring a stable and smooth experience for users. While unit testing was straightforward, identifying edge cases was challenging. Rigorous testing was essential to guarantee proper error handling and avoid application crashes due to unexpected inputs.

Achievements

In conclusion, our team manged to design and implement features, addressed bugs, and managed potential integration issues. Although we faced initial difficulties with complex features like appointment and management, collaboration enabled us to overcome these obstacles, ultimately achieving our goals for WardWatch.
